Battery Laboratory Glove Box For Lithium Ion Batteries Cell Vacuum Down To -0.1MPA
Main Feature
1.Simple structure, easy to use, can prevent ultraviolet money, light weight
2.Under usually conditions, its morphology is stable and high transparent.
3.There is a porous electrical socket in the glove box,which is convenient to scientific experiments.
4.Good sealing performance,and can shield and absorb the α -rays and low-energy β -rays which is emitted by radioactive materials, protect the human body to be damaged by ionizing radiation
5.The glove box can increase the equipment such as test instrument and spin coating instrument according to the customer's request.
Main Application
Our glove boxes are widely used in biochemical, biometallurgical, electronic, chemical, geological, mineral, pharmaceutical and other sectors. Electronic materials, magnetic materials, equipment batteries, biological cultivation, sub-loading weighing, food vacuum packaging, battery materials, etc.
Optional Configuration
1. Type A: This glove box is specifically for protection against radiation, isolation operation or dust-proof operation, and no transition box.
2.Type B: As an anaerobic anhydrous glove box, the transition room can be vacuumed but not vacuumed in the main box, and the glove box could be replaced by inert gas.
3.Type C: The main box and transition box can be vacuumed and replaced by inert gas, limit vacuum degree can reach -0.1mpa.
Acrylic glove box -Type C with vacuum atmosphere
protection | |
| Model | Operation box dimension(mm) | Acrylic thickness(mm) | Transition box | Vacuum | Material | Left round door | Gloves |
| | | | | Main box vacuum | Transition box vacuum | | | |
| MT012 | 700*450*500 | 20mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT011 | 800*550*600 | 25mm | Yes | Yes | Yes | PMMA | 350mm | Two |
| MT010 | 1000*500*500 | 25mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT009 | 1000*700*500 | 30mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT008 | 900*600*700 | 30mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT007 | 1000*600*700 | 30mm | Yes | Yes | Yes | PMMA | 300mm | 0Two |
| MT006 | 1000*750*700 | 30mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT005 | 1200*600*600 | 30mm | Yes | Yes | Yes | The supply of these dimensions is not stable and please contact sales if you need. |
| MT004 | 1200*600*700 | 30mm | Yes | Yes | Yes | The supply of these dimensions is not stable and please contact sales if you need. |
| MT003 | 1200*800*600 | 30mm | Yes | Yes | Yes | The supply of these dimensions is not stable and please contact sales if you need. |
| MT002 | 1200*800*700 | 30mm | Yes | Yes | Yes | The supply of these dimensions is not stable and please contact sales if you need. |
| MT001 | 1094*640*645 | 30mm | Yes | Yes | Yes | PMMA | 400mm | Four |

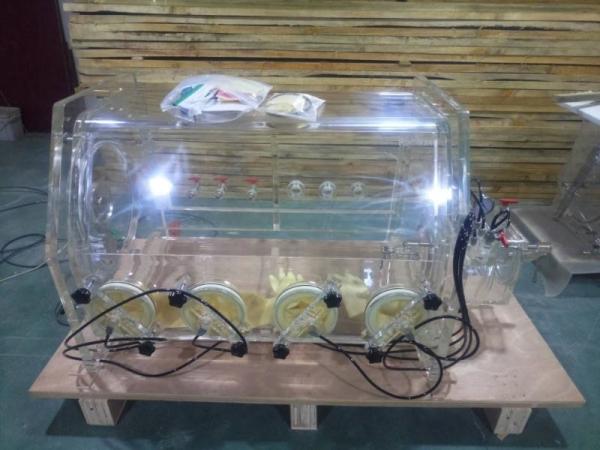

Details of MT001-C
Customized glove box for your reference:
Company Information
Changsha Mitrcn Instrument Equipment Co., Ltd. specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
